BOUNDER Plus H-FRAME POWER WHEELCHAIRS
for users up to 500 lbs.

BOUNDER = HIGH PERFORMANCE!

Here's is what 11.6 mph looks like.

Fast! Configured for 9.1, 10.0, 10.8 or 11.6 mph top speed for most users. Slower speeds easily programmed.

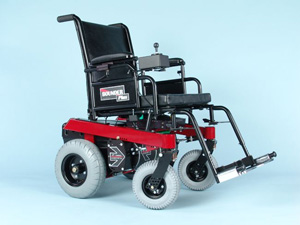

Bounder Plus H-Frame

Extended Range! Large, sliding dual group 27 battery box provides additional range (over 40 miles per charge under ideal conditions; over 25 miles per charge in typical use).* Group 27 batteries are the largest in use on power wheelchairs and are readily available.

* Actual range may vary. Bariatric patients, aggressive drivers, and/or those who frequently drive on carpets or off-road terrain may experience a significant reduction in range. Low tire pressure, weak battery condition, and/or poor overall chair maintenance may also contribute to reduced range. Always maintain your chair in good working order, properly charge or replace your batteries when appropriate, and maintain your pneumatic tire pressure between 50-60 lbs per square inch for best results.

Dimensions*
Seat Width: 12” to 20”
Seat Depth: 12” to 23”
Seat Height: 19” to 25”
25.5" Overall Base Width
Back Height: 15” to 24”
Also custom dimensions
* Some restrictions apply
POWER SEATING OPTIONS
Recline, tilt, seat elevate, and reverse tilt
Dual actuator Power Standing System
Dual independent power elevating legrests (DIPLR)
Toggle switch control or through-the-joystick proportional control

STANDARD FEATURES

» Uses standard 25.5" Overall Base Width Frame. Narrow Base Width Options available
» Durable H-style frame uses 2.5” x 1.5” x 0.125” wall steel - TIG welded for superior strength
» 0.120” wall steel seat rails and back posts - for extra strong seat and back
» Super Torque 3 motors and brakes
» Quiet non-slip Panther synchronous drive belt system - won’t slip in rain or snow; similar to those used on many motorcycles
» Sliding dual group 27 battery box - for extended range and ease of maintenance
» Xtra Duty 12 position adjustable suspension forks - with oversized 1” diameter bearings and fork stems
» Sheet metal pan seat
» Super Duty sling back upholstery - double liner, cap, and web strap under every screw; attached with machine screws
» Detachable desk length arms
» Anti-tipping wheelie wheels
» UE1 Series electronics - 6 drive programs, battery condition meter, diagnostics, and more
» Smart electric brake release - for easy pushing by an attendant
» 9” x 3.50” steel caster wheels - excellent on most surfaces including grass and dirt roads
» 12.75” x 4.00” steel drive wheels - available with smooth or knobby treads
» Safety taillights built in - turn on and off with chair power (turn on and off with light switch if headlight ordered)
» Very stable rear wheel drive - does not fishtail at high speeds unlike front and mid-wheel drives
» Durable black powder coated frame
» Fully automatic 8A dual mode battery charger - charges both gel-cell and lead acid batteries
» Detailed Owner's Manual
» Easy to service and maintain
Bounder Plus H-Frame in white
White Bounder Plus H-Frame

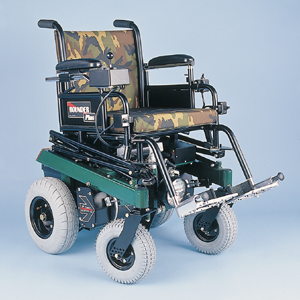

Bounder Plus H-Frame with PSE2 & lighting Package
Bounder Plus H-Frame with PSE2 & Lighting

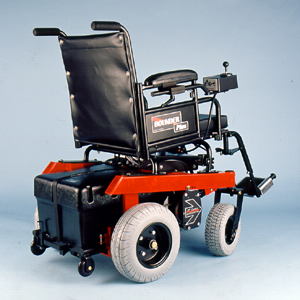

Rear view Bounder Plus H-Frame

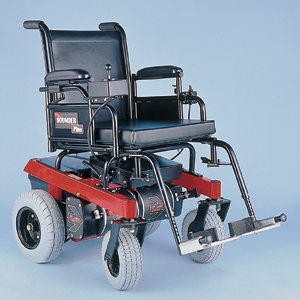

Red Bounder Plus H-Frame


WARRANTY*

  • TWO year warranty on entire chair
  • 5 year warranty on Super Torque 3 Motor & Brake drive trains**
  • 10 year H-frame base warranty
  • 5 year H-frame seat warranty

* Limited warranties - some restrictions apply. See complete warranty for more information
** Includes motors, brakes, drive wheels, drive wheel sprockets

Check out our popular Options:

BOUNDER Plus Narrow Base H-Frames

BOUNDER Plus H Frame Standing Option



OPTIONS FOR MOST BOUNDER MODELS

*See current order/quote forms and price lists for more information
