BIG BOUNDER

POWER WHEELCHAIR

The Solution for Bariatric Mobility

The Heavy Duty BIG BOUNDER Power Wheelchair is designed to provide mobility for the bariatric market. All models are configured with a rear wheel drive platform that provides stable operation in all driving conditions. The BIG BOUNDER is available with a weight capacity of 600 lbs or 1000 lbs. Each BIG BOUNDER is custom made to fit the individual using it. Special attention is given to maximizing needed seat width while keeping the overall width to a minimum for improved accesability in the home.

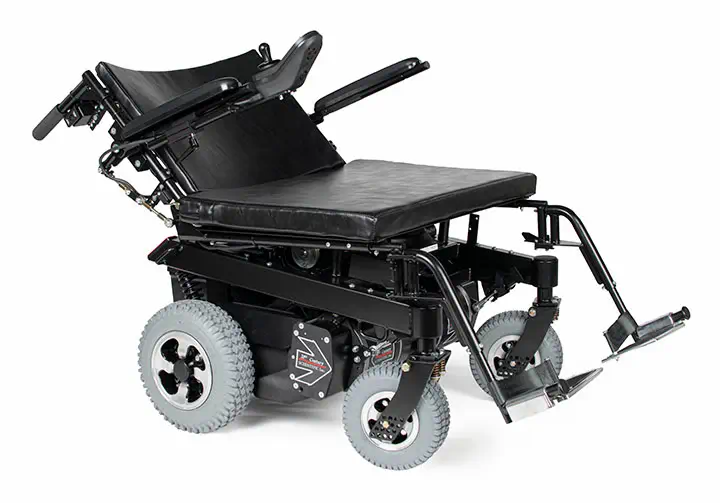

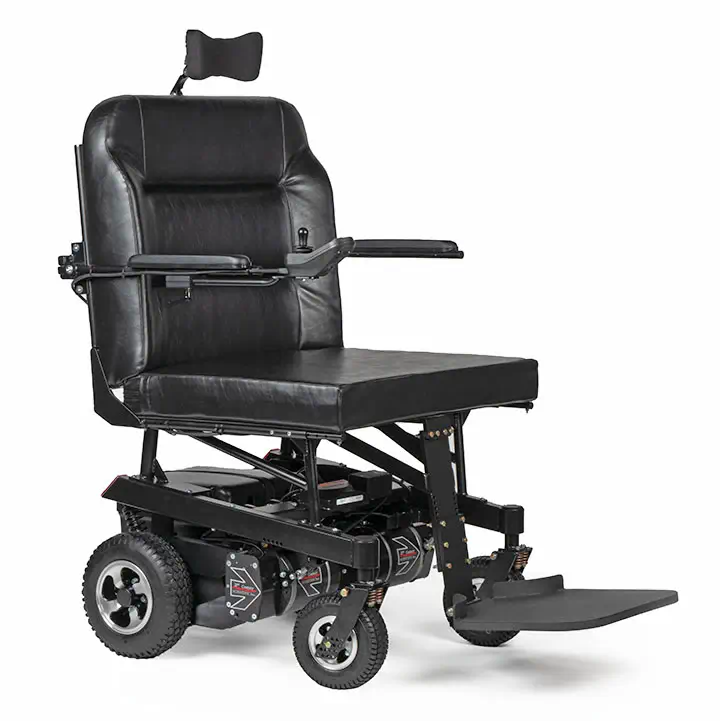

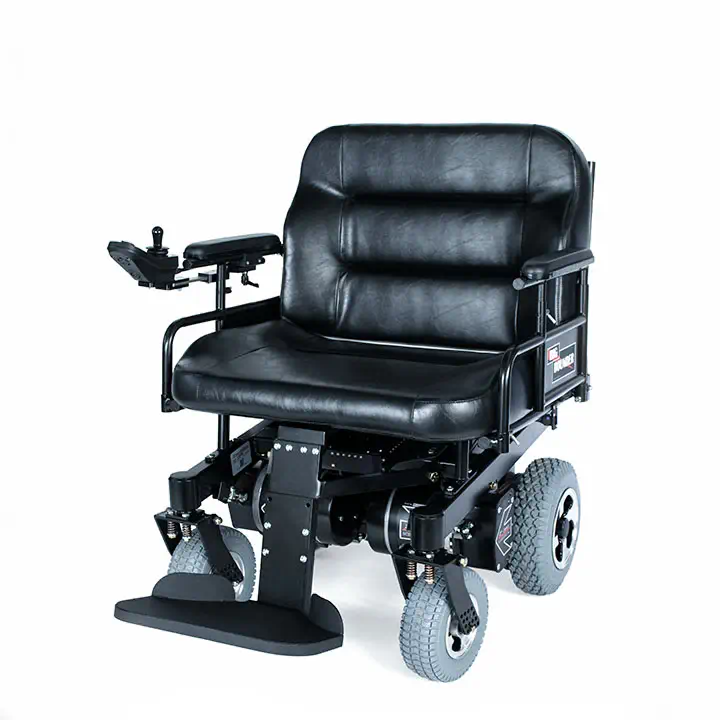

BIG BOUNDER 600

(K0863)

AVAILABLE DIMENSIONS

Seat Width: 24” to 32”
Seat Depth: 16” to 22”
Seat Height: 19” to 21”
Back Height: 18” to 24”
Overall Base Width: 25.5" or 28.5"
Custom dimensions available

STANDARD FEATURES

» For users up to 600 lbs
» 4.5 mph standard top speed - faster speeds available
» Independent Drive Wheel Suspension (IDWS) - improves ride quality and traction
» Xtra Duty 12 position adjustable suspension forks - with oversized 1” diameter bearings and fork stems
» Durable H-style frame uses 2.5” x 1.5” x 0.125” wall steel - TIG welded for superior strength
» 0.120” wall steel seat rails and back posts - for extra strong seat and back
» Super Torque 4M motors
» Ultra Quiet brakes - eliminates the anoying click heard when starting and stopping
» Choice of with LiNX or R-net electronics
» Sliding dual group 24 battery box - for greater range and ease of maintenance.
» Sheet metal pan seat
» Rugged, reinforced 70 degree swing-away footrests
» Flip-up self supporting arms
» Anti-tipping wheelie wheels
» 9” x 3.50” aluminum caster wheels - excellent on most surfaces including grass and dirt roads
» 13” x 4.00” aluminum/steel drive wheels - available with smooth or knobby treads
» Choice of black or gray tires
» Foam filled tires standard
» Very stable rear wheel drive - does not fishtail at high speeds unlike front and mid-wheel drives
» Durable black powder coated frame
» Fully automatic 8A battery charger - charges gel-cell batteries

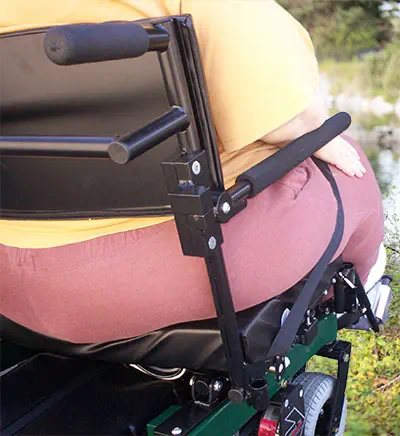

» Seat mount positioning strap
» Detailed Owner's Manual
» Easy to service and maintain

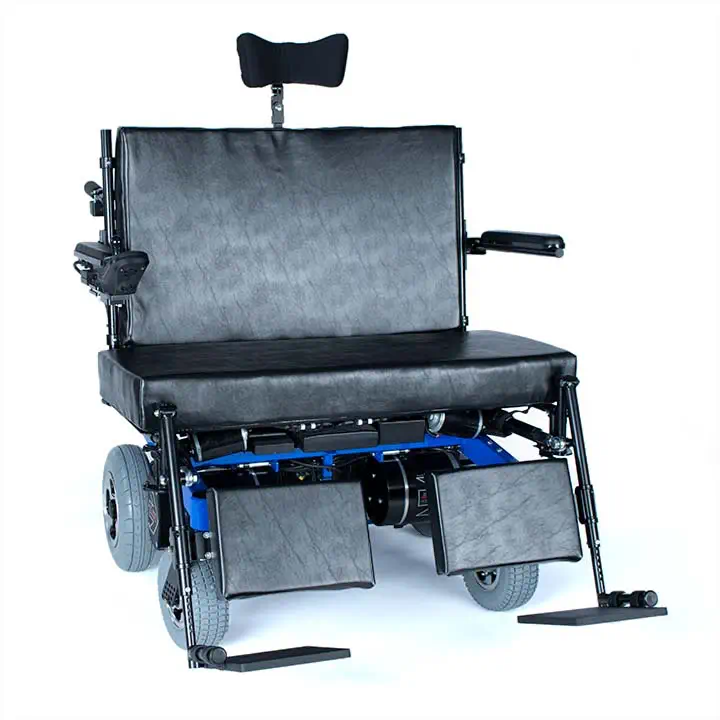

BIG BOUNDER 1000

(K0840)

AVAILABLE DIMENSIONS

Seat Width: 26” to 36”
Seat Depth: 16” to 22”
Seat Height: 19” to 21”
Back Height: 18” to 24”
Overall Base Width: 25.5" - 35.5" depending on seat width
Custom dimensions available

ALL BIG BOUNDER 600 FEATURES
And...

» For users up to 1000 lbs
» 4.2 mph standard top speed - faster speeds available
» Additional frame reinforcements
» Super Torque 4S motors and brakes
» Additional seat width options
» Heavy Duty Caster Fork Springs

WARRANTY*

ONE YEAR warranty on entire chair
FIVE YEAR warranty on Super Torque Motor & Brake drive trains**
FIVE YEAR H-frame base warranty
TWO YEAR H-frame seat warranty

* Limited warranties - some restrictions apply. See complete warranty for more information
** Includes motors, brakes, drive wheels and drive wheel sprockets

BIG BOUNDER

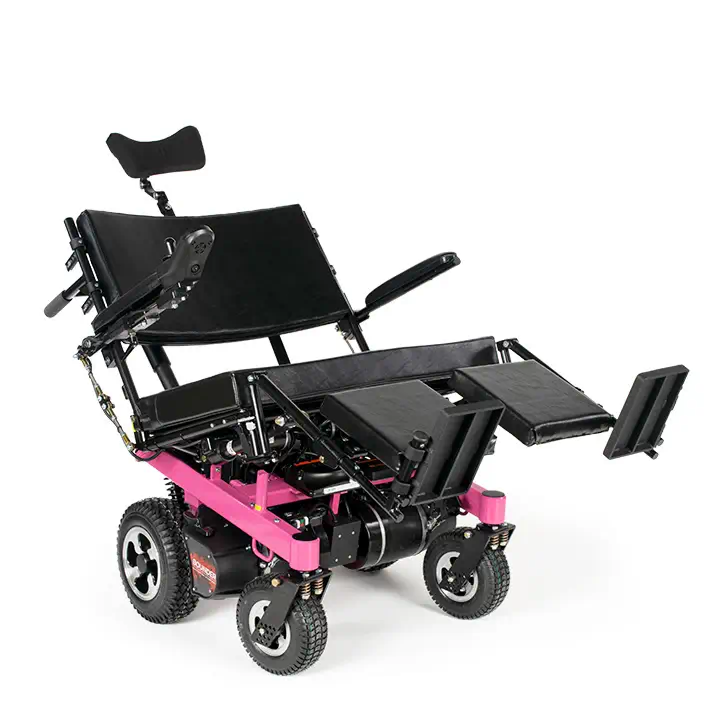

POWER SEATING OPTIONS

Tilt, recline, and anterior tilt

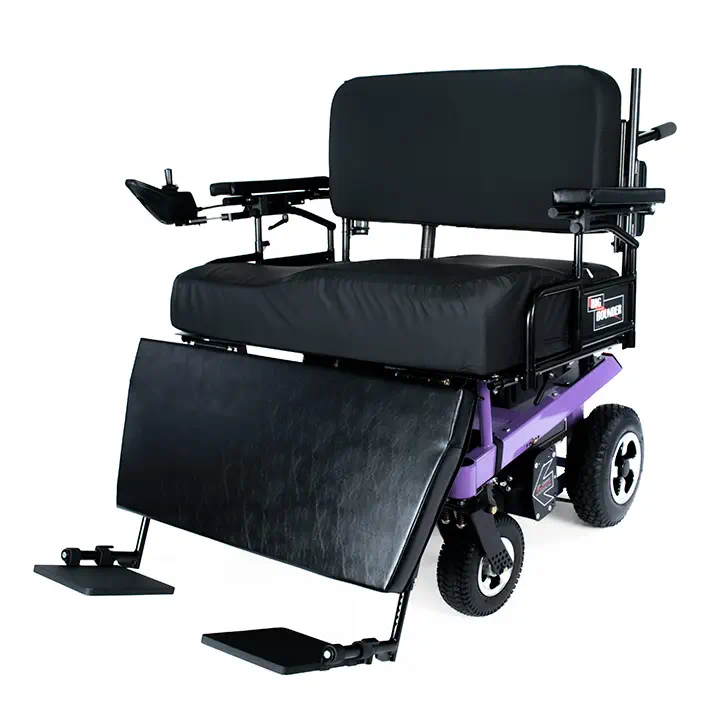

Heavy Duty Dual Independent Power Elevating Legrests (DIPLR), Power Elevating Articulating Center Mount Footboard (PEACM) or a Power Elevating Calf Panel (PECP)
Joystick, pushbutton or toggle switch control

POPULAR OPTIONS

Endomorphic (offset) backposts
Accomodation for a gluteal shelf
Durable powder coated frame colors
Several seat and back options
Many types of front rigging and arms
Headrests
Swing-away hand control extension slide
Dual-post arms
Angle adjustable footplates
Center mount angle adjustable footboard
Footplate roller bumpers
Respirator shelves and O2 bottle holders
Many electronic options
Many accessories: taillights, headlamps, horn, rear view mirror, electric leg bag emptier, etc
